EWP Hangers
Beam Hangers
HLBH
Reference Series: HGLTV
Heavy-duty hanger for LVL, LSL, and PSL beams.
Materials: 7 gauge
Finish: primer
Code Reports:
View Code Report Table
Technical Bulletins
Installation
- Use all specified fasteners.
- 16d ring shank nails are supplied with HLBH hangers.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

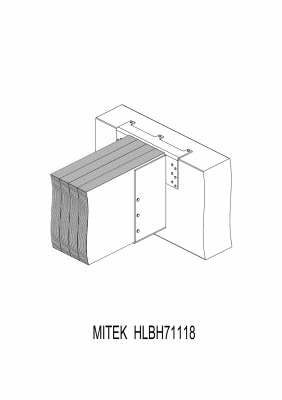

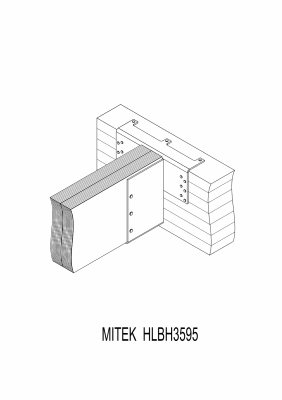

HLBH Beam Hanger

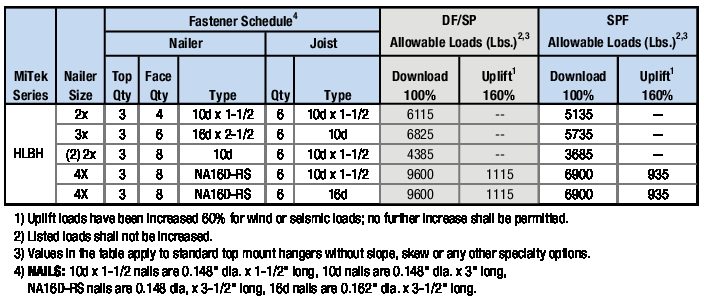

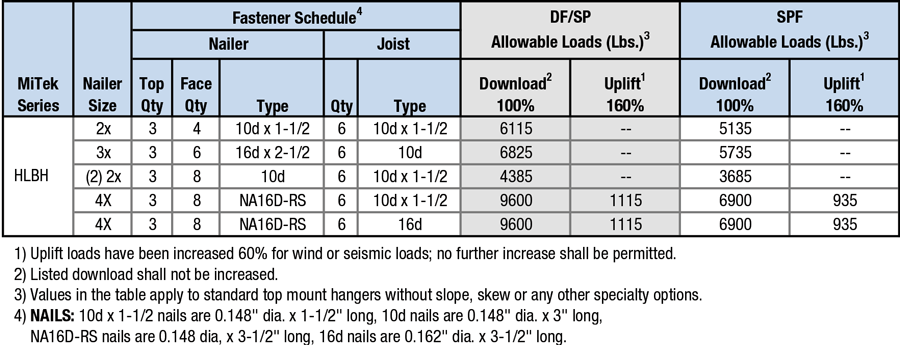

Load Table
Joist Sizes: 1-1/2” x 9-1/4” to 2-1/4” - 2-5/16” x 11-7/8”
Joist Sizes: 2-1/4” - 2-5/16” x 14” to 2-5/8” x 16”

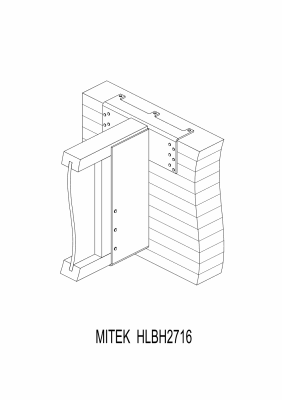

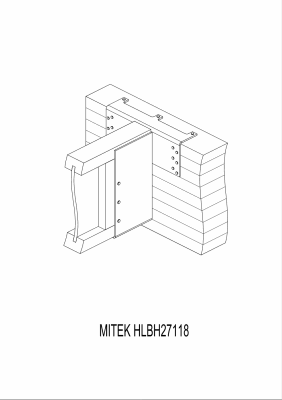

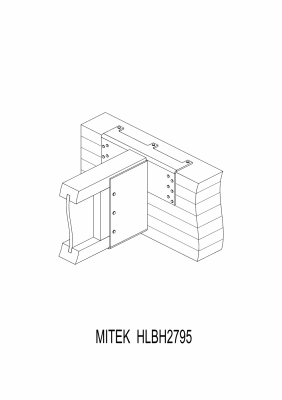

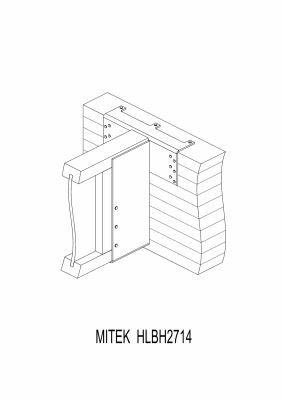

Joist Sizes: 2-11/16” x 9-1/4” to 3-1/2” x 9-1/2”
Joist Sizes: 3-1/2” x 11-1/4” to 3-1/2” x 18”
Joist Sizes: 3-1/2” x 20” to 4” - 4-3/16” x 14”
Joist Sizes: 4” - 4-3/16” x 16” to 5-1/4” x 7-1/4”

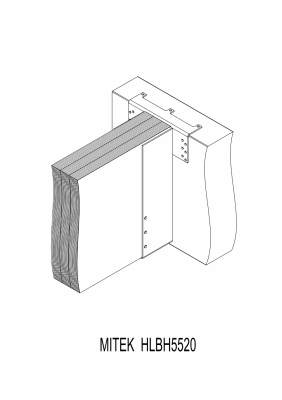

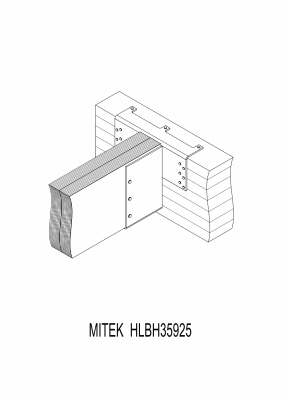

Joist Sizes: 5-1/4” x 9-1/4” to 5-1/4” x 18”

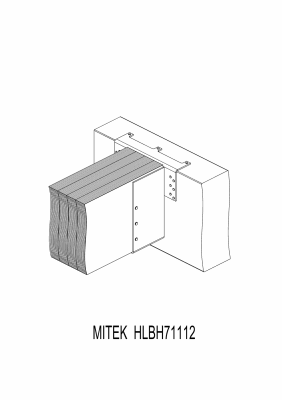

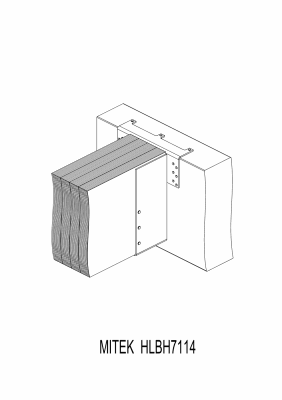

Joist Sizes: 5-1/4” x 20” to 7” x 16”

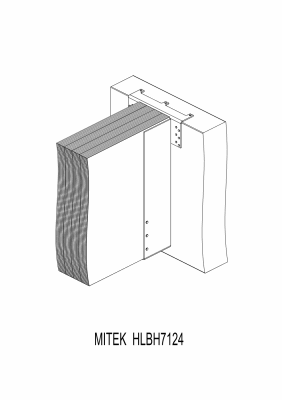

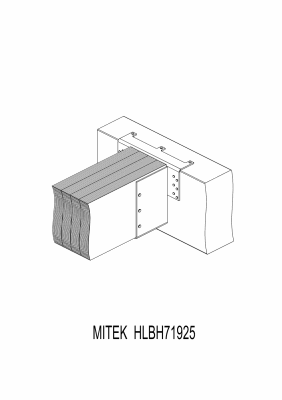

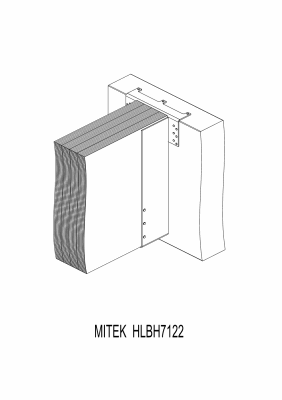

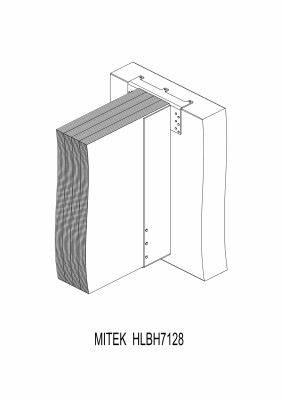

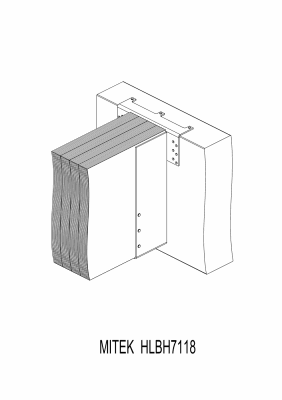

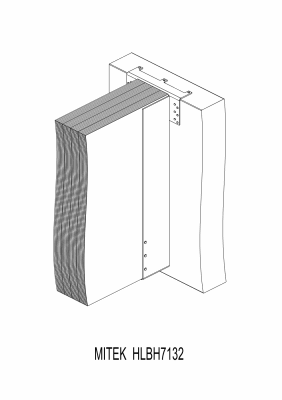

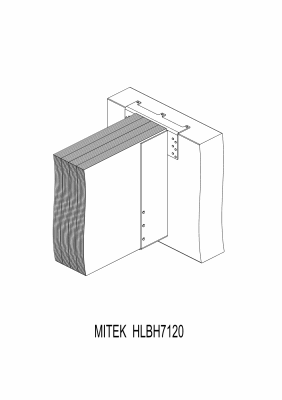

Joist Sizes: 7” x 18” to 7” x 32”

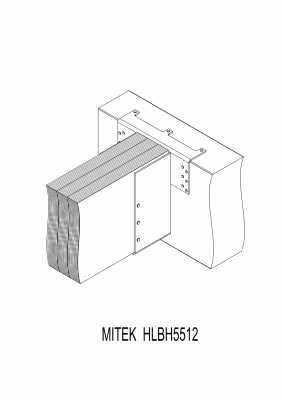

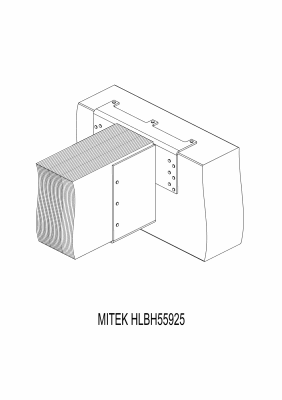

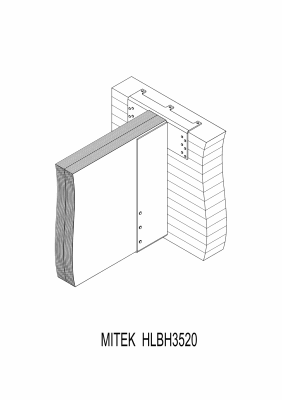

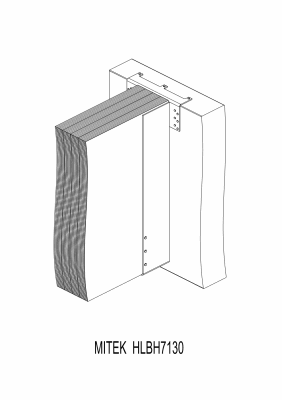

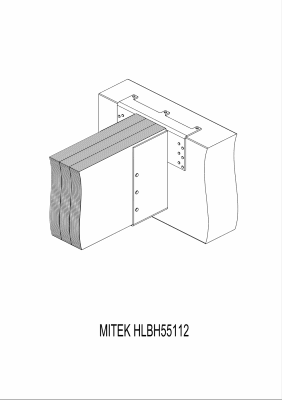

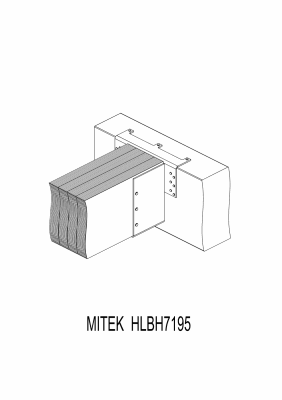

Option Details:
Code Report Table

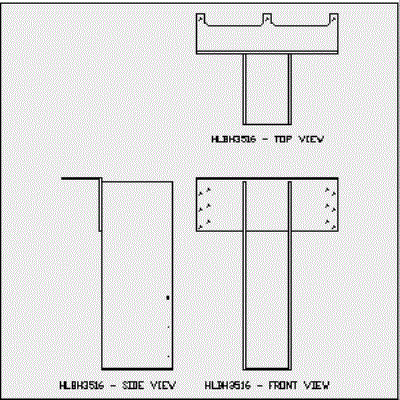

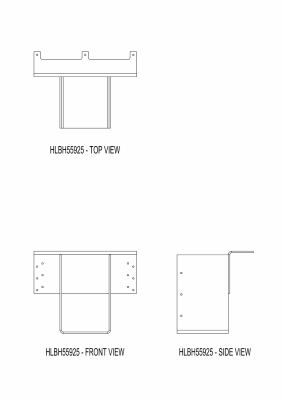

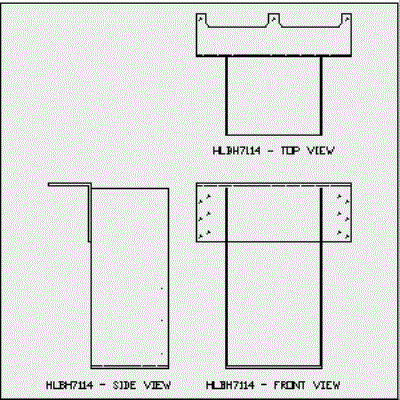

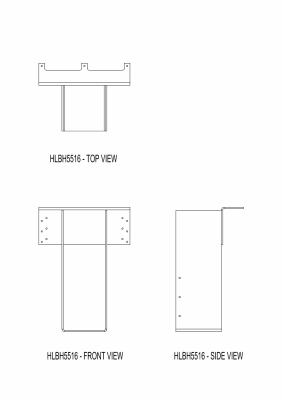

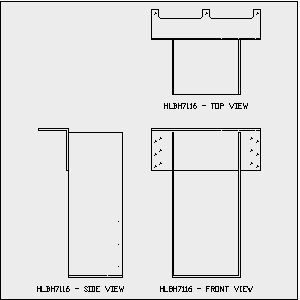

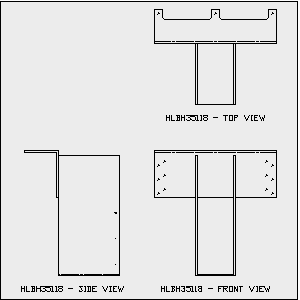

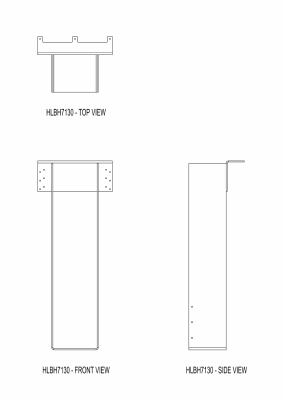

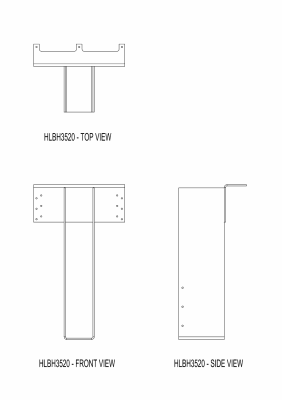

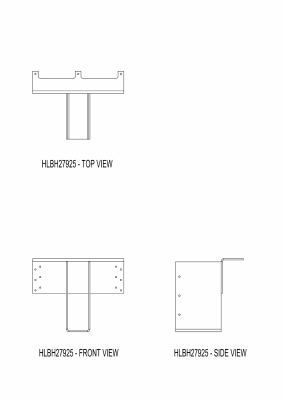

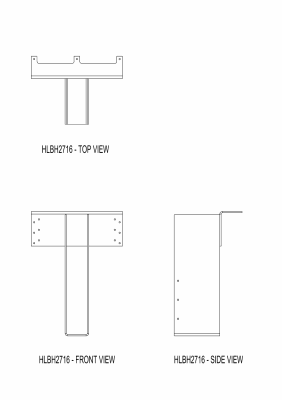

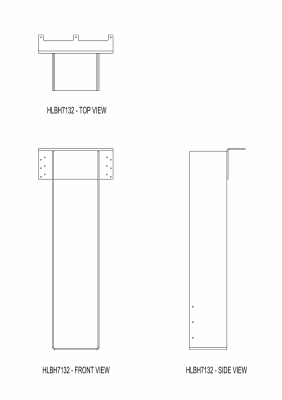

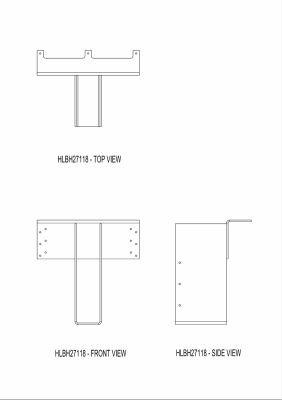

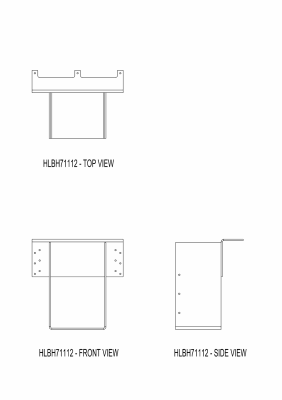

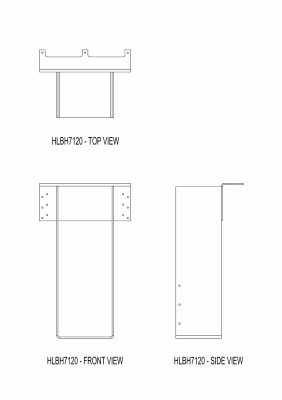

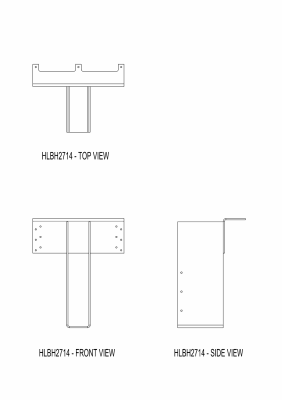

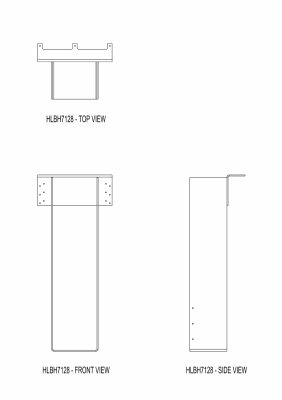

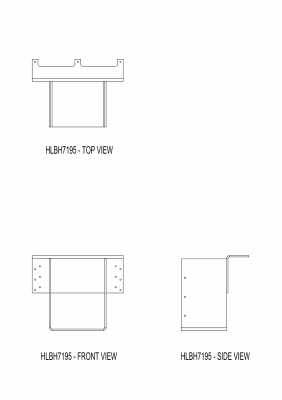

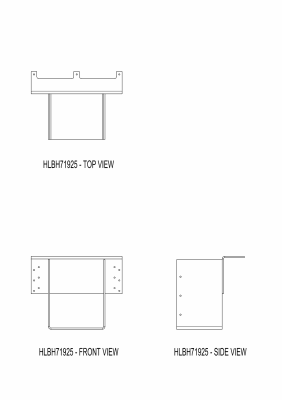

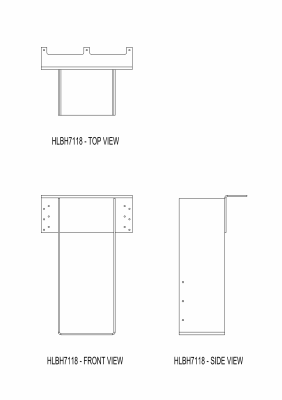

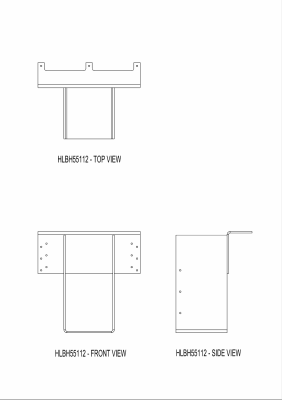

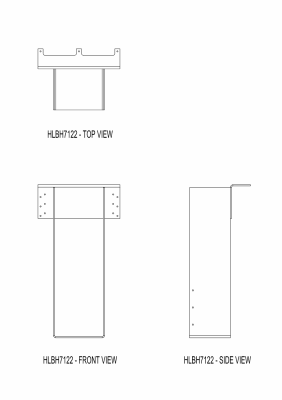

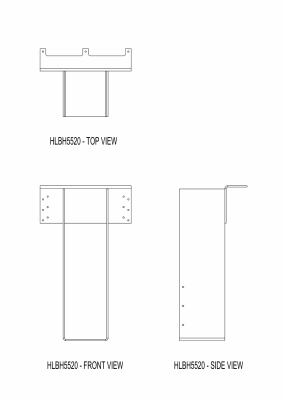

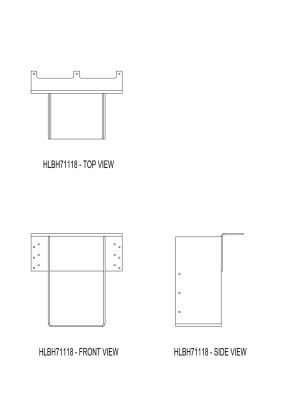

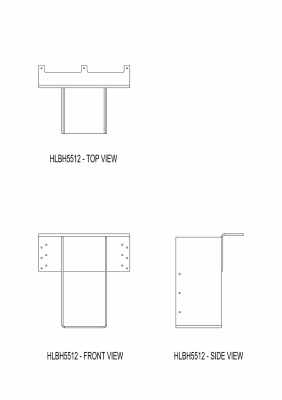

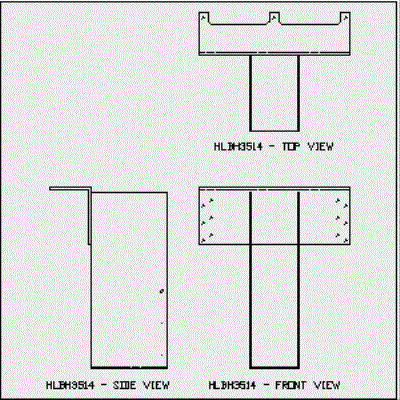

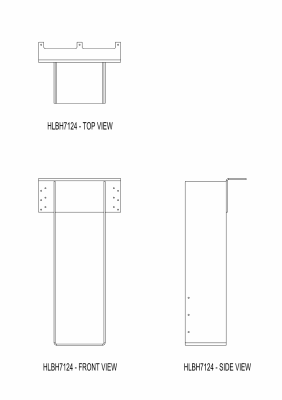

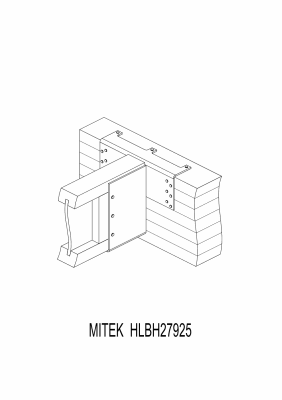

3-View Product Drawings
| MiTek Stock # | Download or View Files | |||
|---|---|---|---|---|

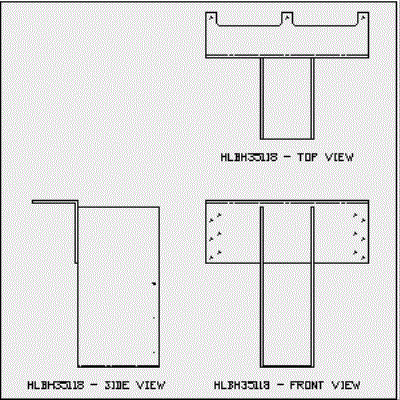

| HLBH35118 | DWG | DXF | View Image | |

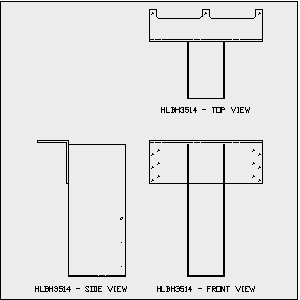

| HLBH3514 | DWG | DXF | View Image | |
| HLBH3516 | DWG | DXF | View Image | |

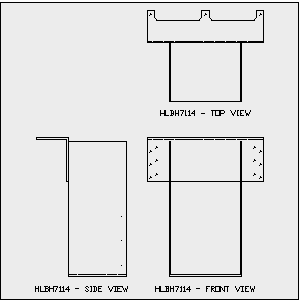

| HLBH7114 | DWG | DXF | View Image | |

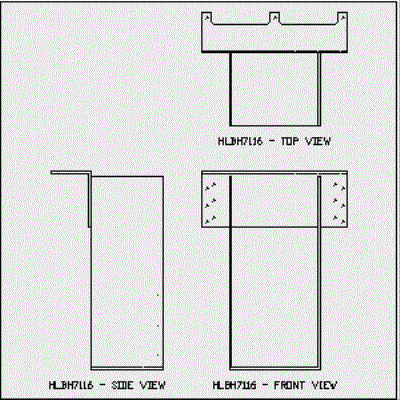

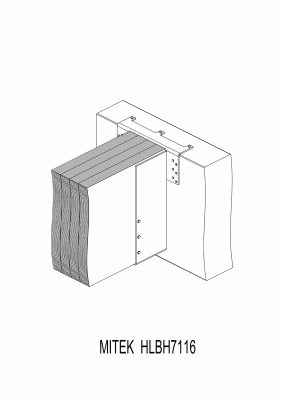

| HLBH7116 | DWG | DXF | View Image | |
