KF / PHG
Reference Series: F, HFN
KF – Fastens to joist ends quickly with nails.
PHG – Features a gripper design to hold the joist in place with out nailing during the assembly process.
PHG – Features a gripper design to hold the joist in place with out nailing during the assembly process.
Materials: 18 gauge
Finish: G90 galvanizing
Code Reports:
View Code Report Table
Resources
MiTek Product CatalogInstallation
- Use all specified fasteners.
- In panelized construction, installers are allowed to nail through both the sheathing and the hanger top flange with (1) 10d nail. The nail should be centered in the top flange and be no closer than 1/4″ from the back or front edge of the top flange.

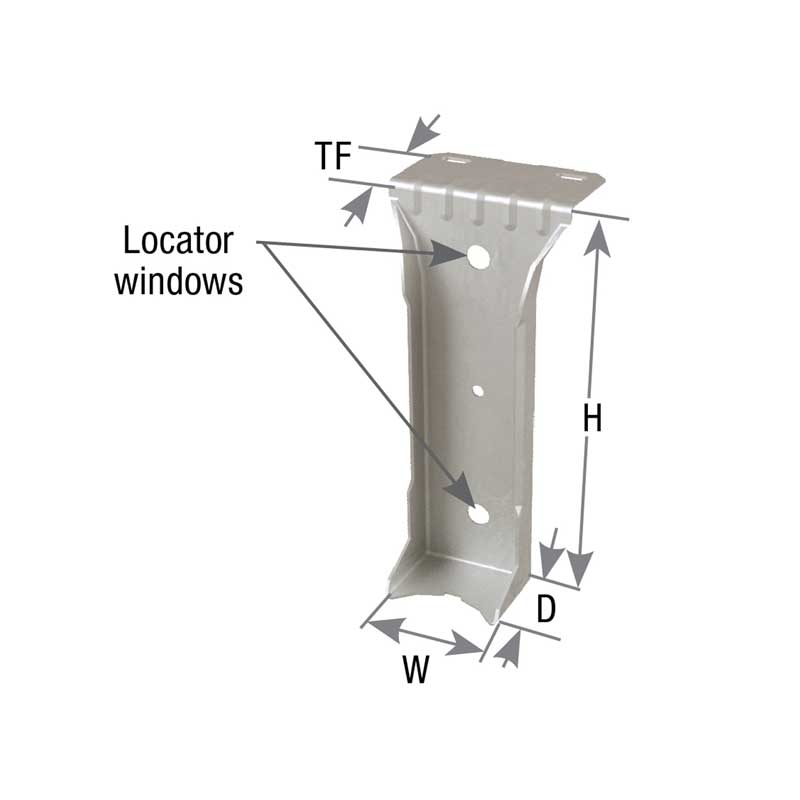

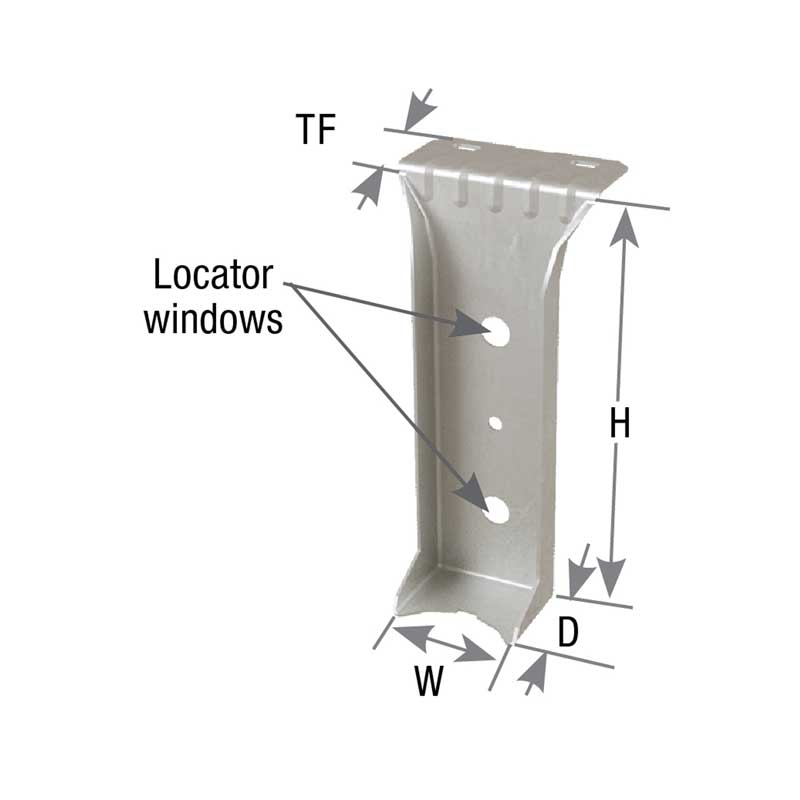

- Use locator window to center hanger on purlin center line.
- KF / PHG – These hangers do not provide uplift resistance.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
KF Panel Hanger
