Angles & Straps
Multi-Purpose Framing Angles
MP / MPA / MPF
Reference Series: A34, A35, LTP
MP – Field adjustable from 45° to 180° (flat).
MPA1 – Tabs enable two and three-way connections.
MP4F – Connects 2x framing with floor sheathing up to 5/8".
MP6F – Connects 3x framing with floor sheathing up to 3/4". Better choice for connections where floor sheathing is between sole plate and rim board.
MPA1 – Tabs enable two and three-way connections.
MP4F – Connects 2x framing with floor sheathing up to 5/8".
MP6F – Connects 3x framing with floor sheathing up to 3/4". Better choice for connections where floor sheathing is between sole plate and rim board.
Materials: See Load Table
Finish: G90 galvanizing
Code Reports:
View Code Report Table
Installation
- Use all specified fasteners.
- MP Framing Angles are fabricated at 100° and may be field adjusted by hand from 45-degree to 180-degree (flat). Bend angle only once.
- Bend tabs only once.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
MP5 Framing Angle
Option Details:
Code Report Table
MPA1-SS
MP5-SS
No Code Listing
MP6F-SS
No Code Listing

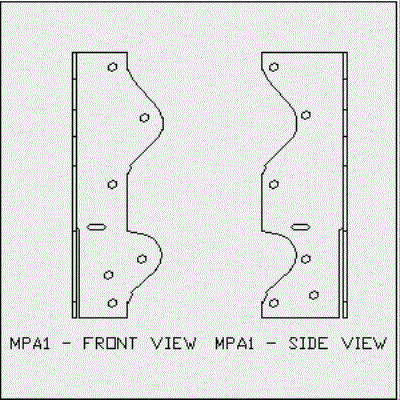

3-View Product Drawings
| MiTek Stock # | Download or View Files | |||
|---|---|---|---|---|
| MP3 | DWG | DXF | View Image | |
| MP4F | DWG | DXF | View Image | |
| MP5 | DWG | DXF | View Image | |
| MP6F | DWG | DXF | View Image | |
| MP7 | DWG | DXF | View Image | |
| MP9 | DWG | DXF | View Image | |
| MPA1 | DWG | DXF | View Image | |

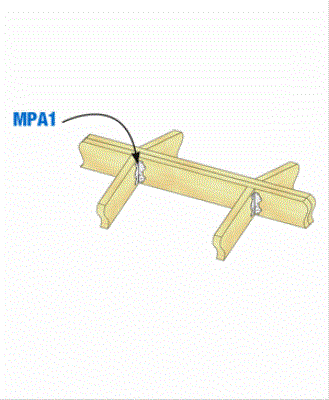

High Wind Drawings
| MiTek Stock # | Download or View Files | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MP |
|
||||||||||
| MP4F |
|
||||||||||
| MP5 |
|
||||||||||
| MPA |
|
||||||||||
| MPA1 |
|
||||||||||
No Code Listing
