Concrete and Masonry

Holdowns

UPHD

Reference Series: HDQ, HDU, HHDQ
Engineered for high capacity with minimum deflection and low eccentricity. Installs with screws eliminating the need for predrilling and potential fastener slip. No thru bolts to countersink.

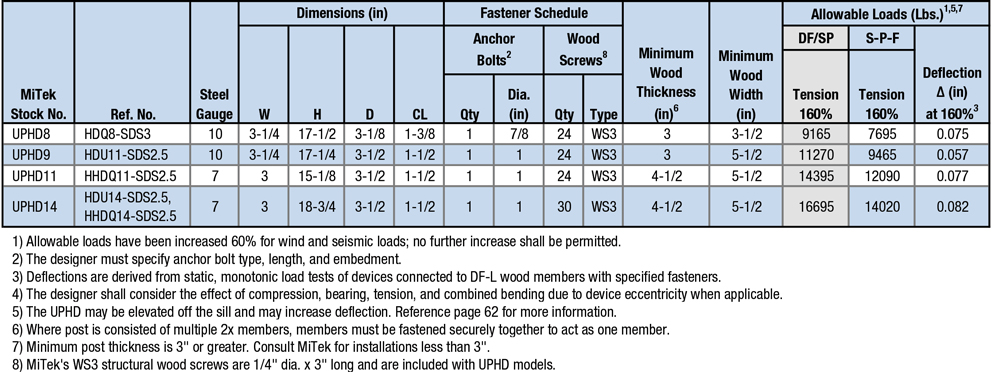

Materials: See Load Table
Finish: Primer
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Place holdown over anchor bolt and drive screws into post.
  • Tighten anchor bolt nuts finger tight to base plus 1/3 to 1/2 additional turns with a wrench.
  • Holdown may be installed off of the plate with no load reduction.
  • If used to anchor a built-up post, such as a double 2 x 4, the post component shall be designed to act as a single unit. Holdown fasteners specified shall not be considered to attach multiple plies together.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

UPHD Holdown

UPHD Holdown

UPHD HoldownTypical UPHD installationTypical UPHD concrete wall installation

Code Report Table

UPHD11
0200
LABC_ER-0200
UPHD14
0200
LABC_ER-0200
UPHD8
0200
LABC_ER-0200
UPHD9
0200
LABC_ER-0200

3-View Product Drawings

MiTek Stock # Download or View Files

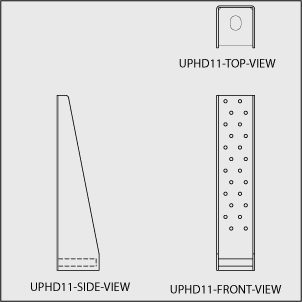

UPHD11 DWG DXF PDF View Image

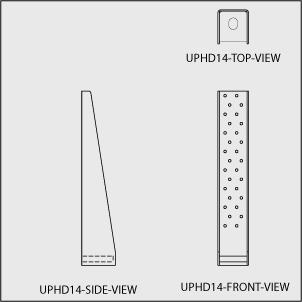

UPHD14 DWG DXF PDF View Image
UPHD8 DWG DXF PDF View Image
