EWP Hangers
Top Mount Hangers

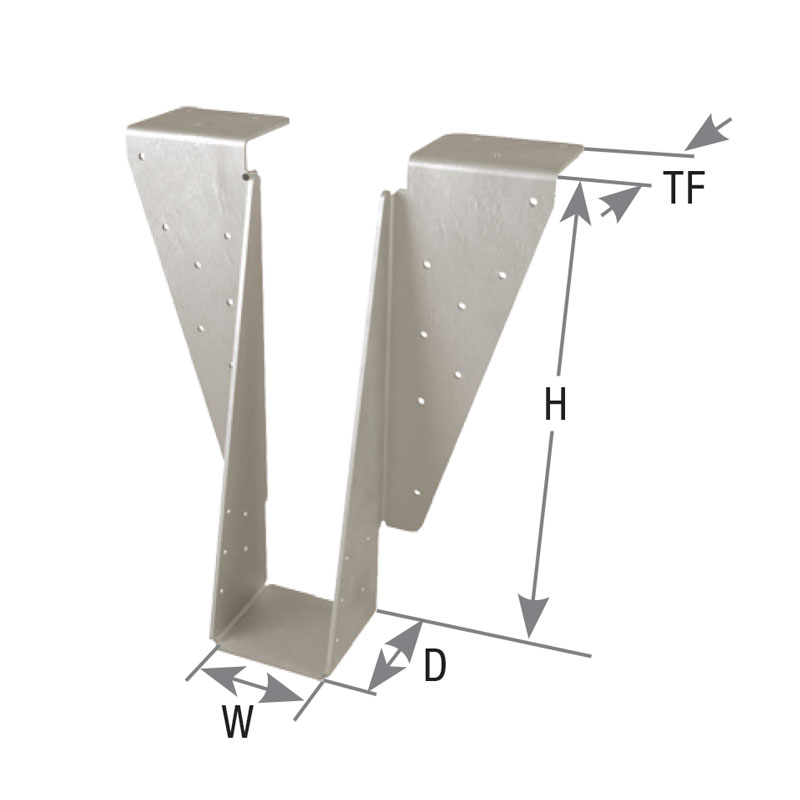

BPH / HBPH
Reference Series: B, BA, HB, HWI, LBV, MIT
These hangers are used to support LVL, LSL, and PSL beams and headers in medium-to-heavy load conditions.
Materials: BPH – 12 gauge; HBPH – 10 gauge
Finish: G90 galvanizing
Code Reports:
View Code Report Table
Technical Bulletins
Installation
- Use all specified fasteners.
- Refer to the top mount load table for applications requiring web stiffeners.
- Requirements for web stiffener from the I-Joist manufacturer should be followed, even if web stiffeners are not required in MiTek literature.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

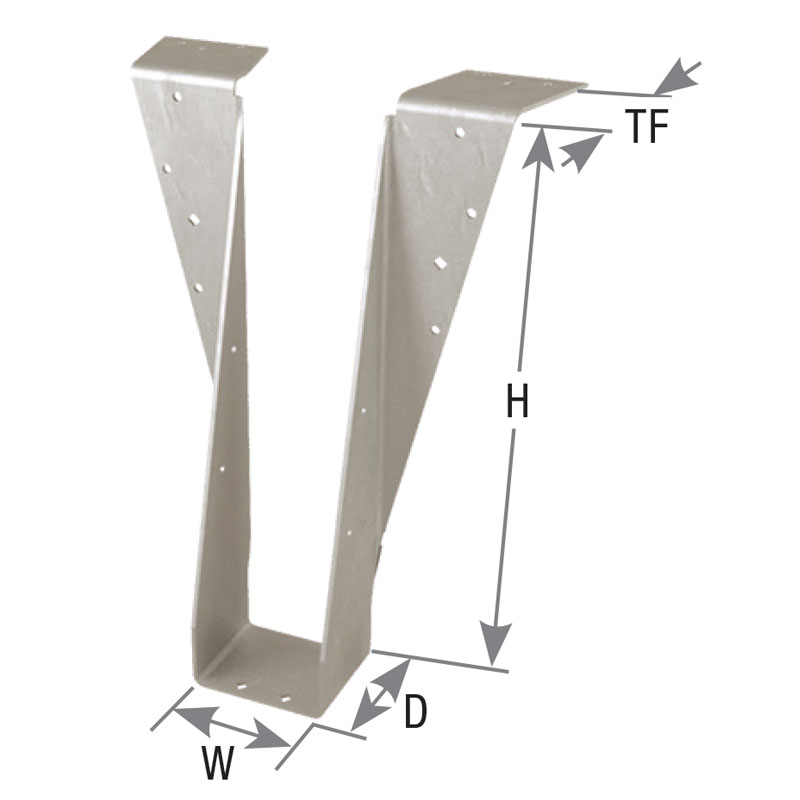

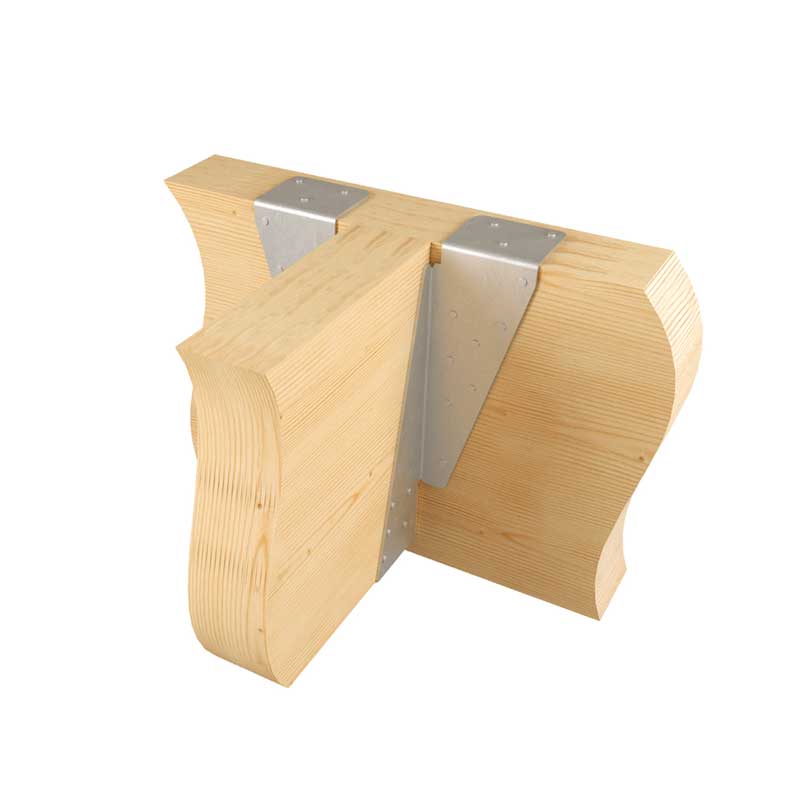

BPH Top Mount Hanger

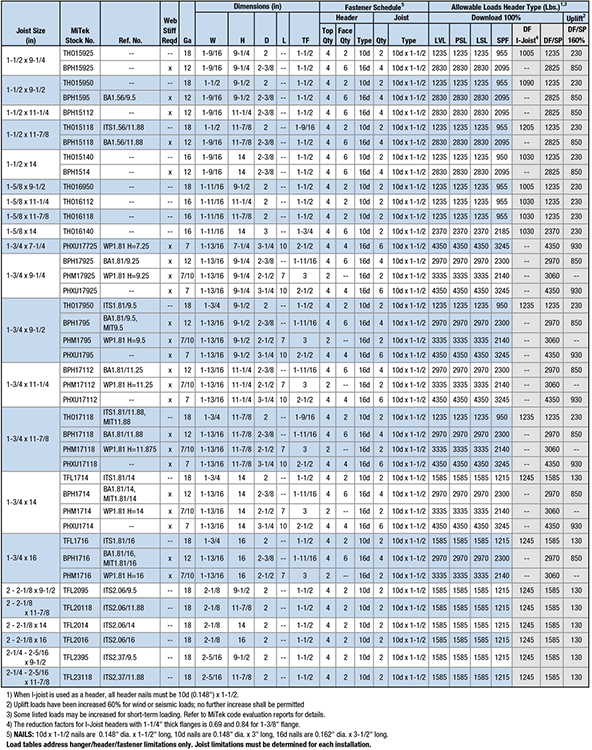

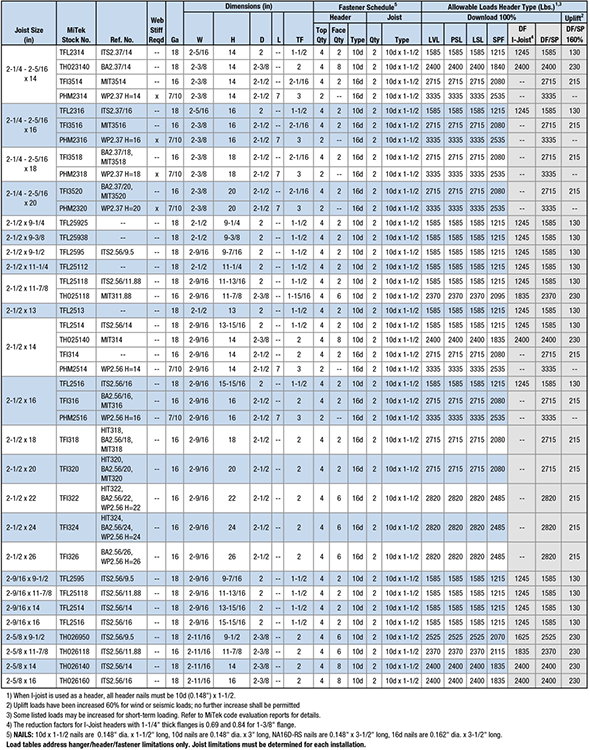

Load Table
Joist Sizes: 1-1/2” x 9-1/4” to 2-1/4” - 2-5/16” x 11-7/8”
Joist Sizes: 2-1/4” - 2-5/16” x 14” to 2-5/8” x 16”

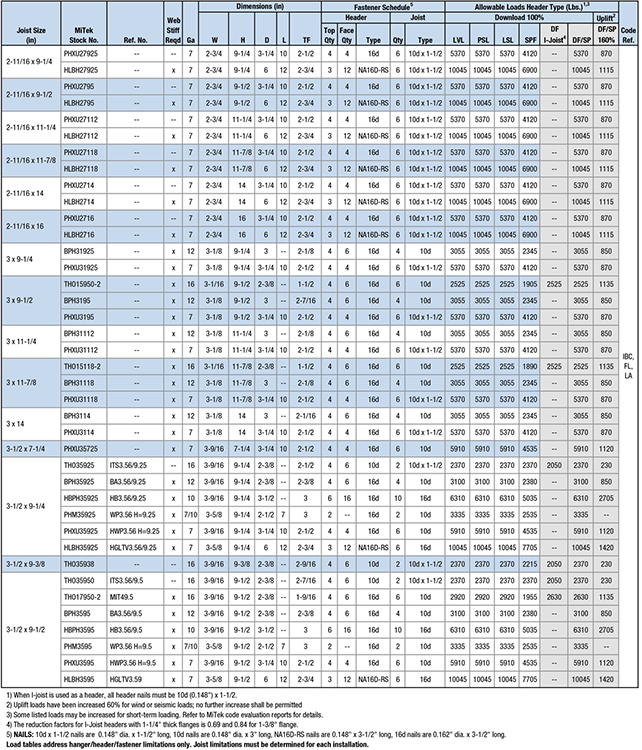

Joist Sizes: 2-11/16” x 9-1/4” to 3-1/2” x 9-1/2”
Joist Sizes: 3-1/2” x 11-1/4” to 3-1/2” x 18”
Joist Sizes: 3-1/2” x 20” to 4” - 4-3/16” x 14”
Joist Sizes: 4” - 4-3/16” x 16” to 5-1/4” x 7-1/4”
Joist Sizes: 5-1/4” x 9-1/4” to 5-1/4” x 18”
Joist Sizes: 5-1/4” x 20” to 7” x 16”

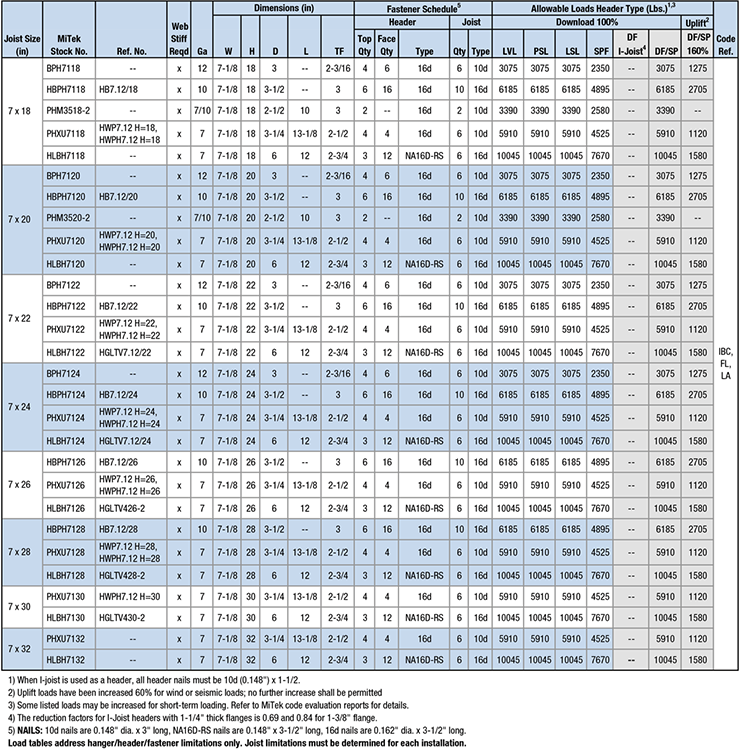

Joist Sizes: 7” x 18” to 7” x 32”

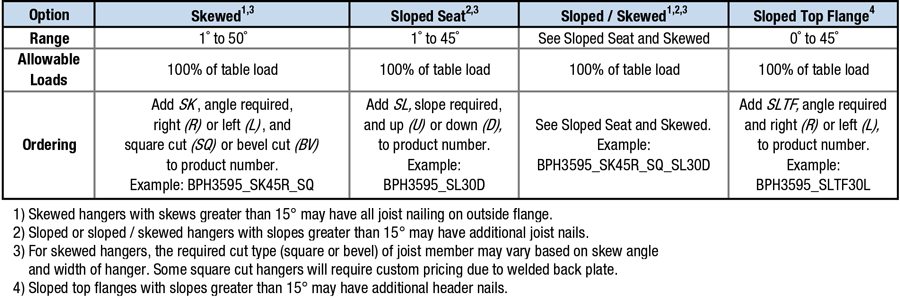

Option Details:
Code Report Table
BPH55725
No Code Listing
