Hex Head Interior Structural Wood Screws
WS series
Reference Series: -- --
The WS Wood Screw is a self-drilling screw used for numerous interior framing applications. For use in wood-to-wood and steel-to-wood applications. Head stamped to indicate length for easy inspection.
Features & Benefits:
• No predrilling
• Type 17 point reduces installation torque and splitting
• 3/8" hex drive
• Length identification stamps on all heads
• 1/4" shank diameter, 0.54" head diameter
Features & Benefits:
• No predrilling
• Type 17 point reduces installation torque and splitting
• 3/8" hex drive
• Length identification stamps on all heads
• 1/4" shank diameter, 0.54" head diameter
Materials: 1/4" diameter Grade 5 steel
Finish: Yellow Zinc
Code Reports:

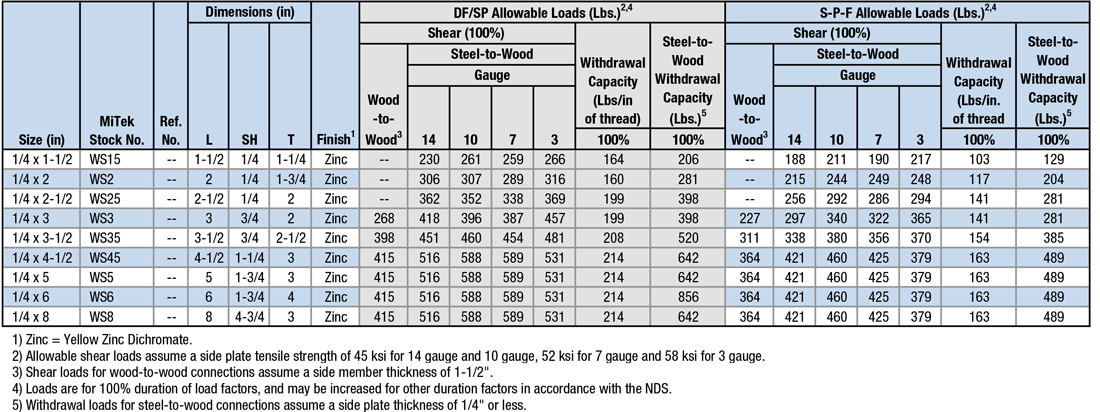

View Code Report Table
Resources
MiTek Product CatalogInstallation
- Screws are self-drilling.
- Install using a low speed clutch drill with 3/8″ hex head driver. The washer head should be flat to the surface and the serrations will oppose turning and release the clutch. Do not over-tighten the screws.
- Care should be given to ensure the fastener is installed perpendicular to the plane of the side plate.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
WS Hex Head Structural Wood Screw
