General Hardware
Protection Plates
ICPL / KNS / PL
Reference Series: NS, PSPN
Easy-to-install plates protect plumbing and power/communication wiring from nail or screw penetration. 16 gauge steel conforms to protection shield plate requirements of the National Electrical Code and International Plumbing Code.
ICPL58 – Installs with nails.
KNS1 / PL4 – Prongs allow for quick installation.
• IRC 2603.2.1 and R602.6.1
• IBC 2308.5.8
• IPC 305.6
ICPL58 – Installs with nails.
KNS1 / PL4 – Prongs allow for quick installation.
• IRC 2603.2.1 and R602.6.1
• IBC 2308.5.8
• IPC 305.6

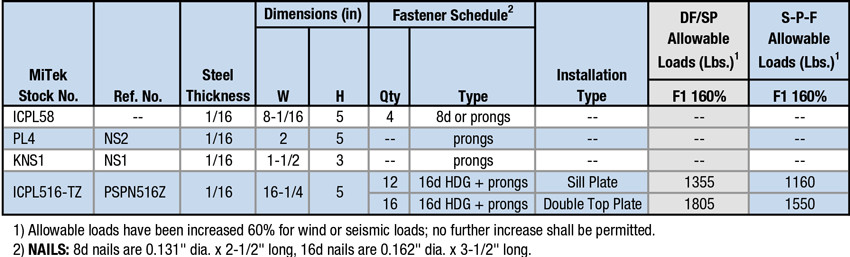

Materials: 16 gauge
Finish: ICPL516-TZ – G-185 galvanizing; All others – G90 galvanizing
Code Reports:
View Code Report Table
Resources
MiTek Product CatalogTechnical Bulletins
Installation
- Use all specified fasteners.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
ICPL58 Protection Plate
Option Details:

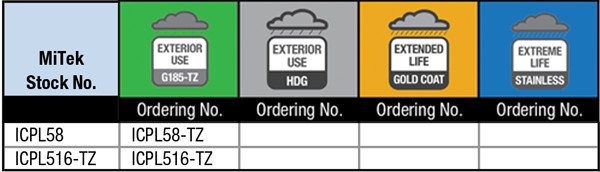

Code Report Table
ICPL516-TZ
ICPL58
Product meets Prescriptive Code Requirements
ICPL58-TZ
Product meets Prescriptive Code Requirements
KNS1
Non-Structural: Product is not load rated and does not require code evaluation.
PL4
Non-Structural: Product is not load rated and does not require code evaluation.
Product meets Prescriptive Code Requirements
