Glulam Beam Connectors

Hinge Connectors

KHC

Reference Series: HCA

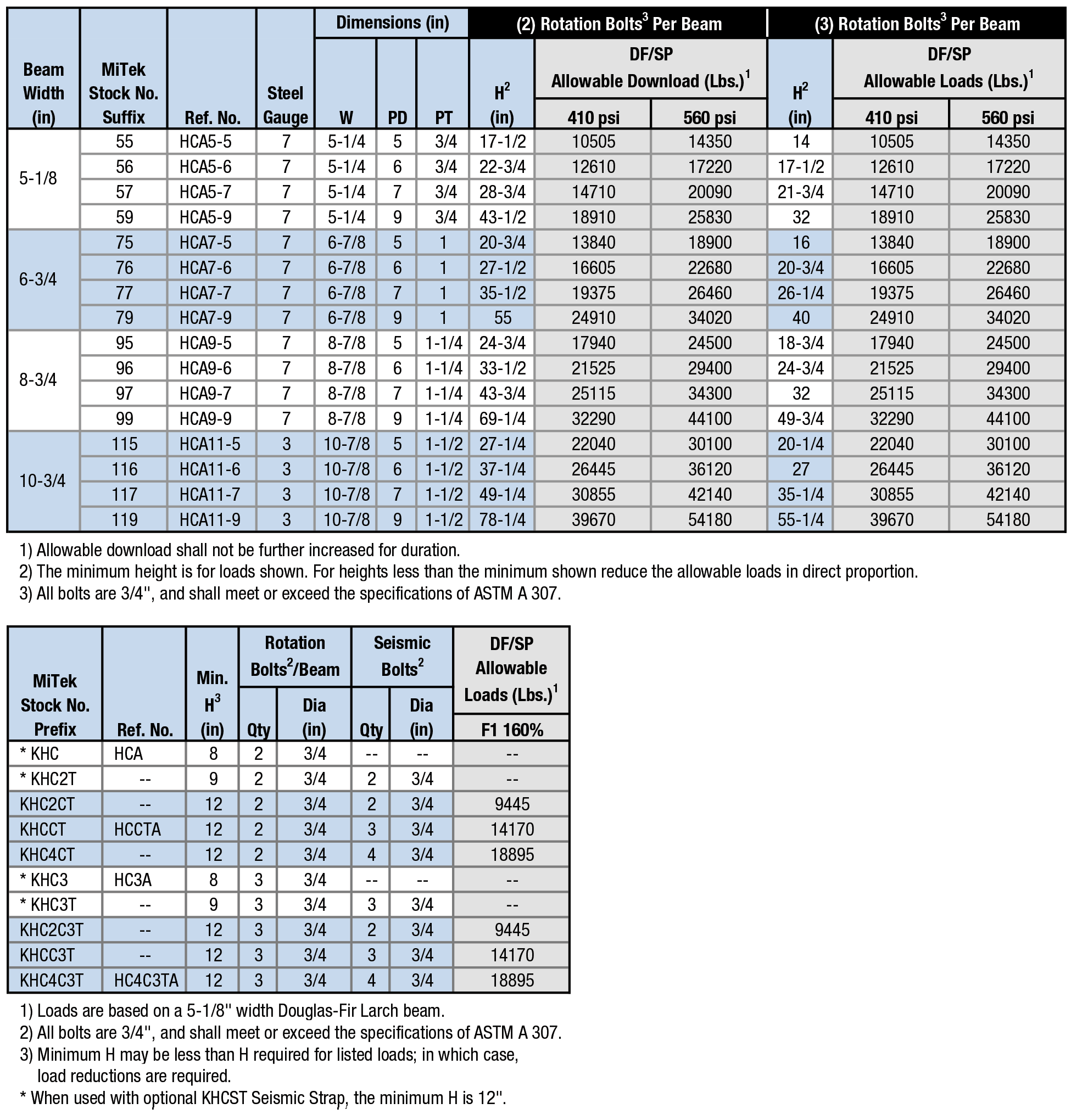

Supports a glulam beam off of another glulam beam. Refer to the Optional Horizontal Loading Chart for design variations.
Materials: See Load Table
Finish: Primer
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • To allow for wood shrinkage, position bolts in slots away from the bearing seat.
  • For dapped beams, reduce the “H” dimension by the “PT” dimension for each dap.
