Glulam Beam Connectors
Glulam Beam Hangers
KGLT / KHGLT
Reference Series: HGLT, HGLTV
These heavy beam hangers are designed for use with glulam and timber beams. The continuous top mount flange offers high load capacity with minimal fastening.
KGLT – Medium capacity hanger.
KHGLT – Heavy capacity hanger.
KGLT – Medium capacity hanger.
KHGLT – Heavy capacity hanger.
Materials: Top flange – 3 gauge; U-Strap – 7 gauge
Finish: Primer
Code Reports:
View Code Report Table
Technical Bulletins
Installation
- Use all specified fasteners.
- Beam height dimension (H) must be specified when ordering.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

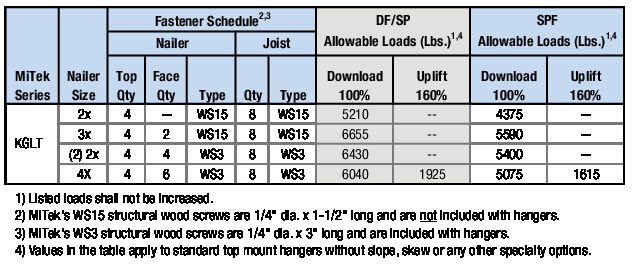

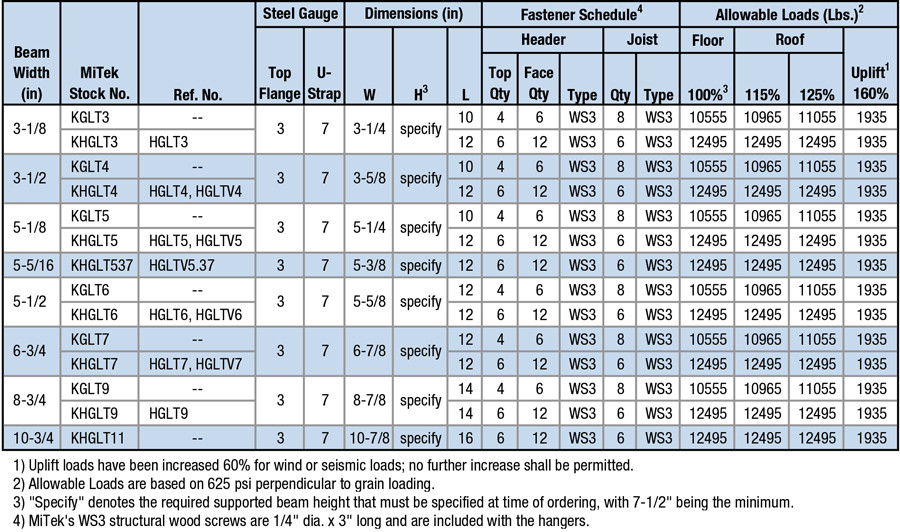

KGLT Glulam Beam Hanger

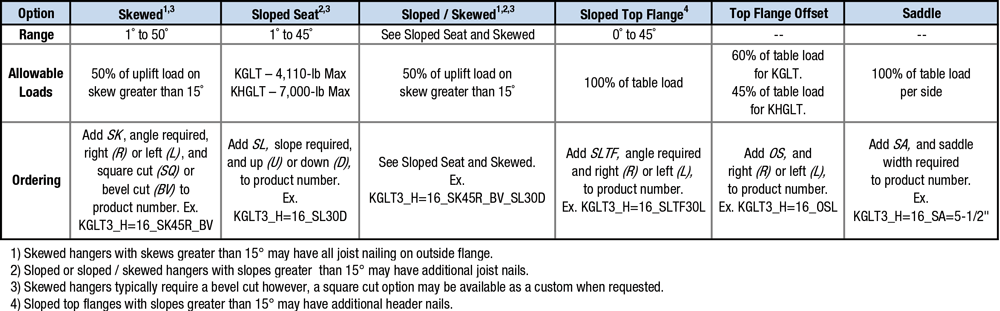

Option Details:
Code Report Table
3-View Product Drawings
| MiTek Stock # | Download or View Files | |||
|---|---|---|---|---|
| KGLT5H9 | DWG | DXF | View Image | |
