Plated Truss

Roof Truss Ties

TR

Reference Series: DTC, STC, STCT
Slotted design allows truss to deflect without imposing load on wall below.

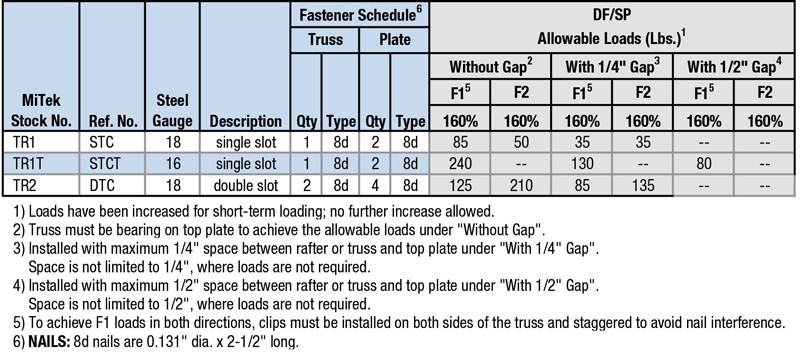

Materials: See Load Table
Finish: G90 galvanizing
Code Reports: View Code Report Table

Technical Bulletins

Installation

  • Use all specified fasteners.
  • Do not fully set nails.
  • Locate nails into the center of slots.
  • Due to the potential for squeaks, the TR series products are not recommended for floor applications.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

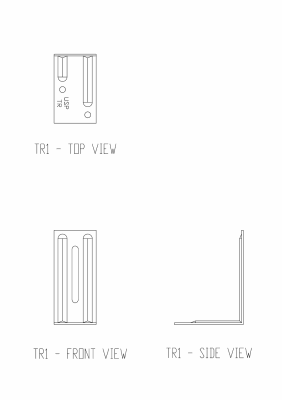

TR1 Roof Truss Tie

TR1 Roof Truss Tie

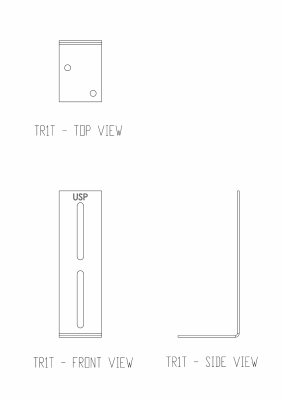

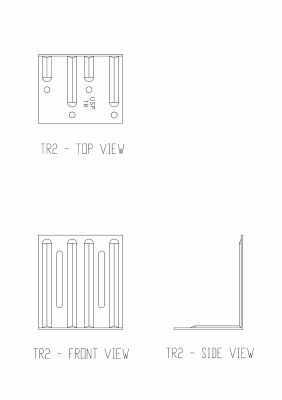

TR1 Roof Truss TieTR1T Roof Truss TieTR2 Roof Truss TieTypical TR2 installation

Code Report Table

TR1

No Code Listing

TR1T

No Code Listing

TR2

No Code Listing
