Truss and Rafter Tiedowns
Girder Tiedowns
LUGT
Reference Series: LGT
The LUGT series is an adaptable tiedown for girder trusses and offers several installation options to accommodate different framing conditions. It is an ideal retrofit solution to reinforce truss connections to transfer high wind loads to supporting walls and can be used on either wood framed, concrete or CMU block walls. Sizes available for 1-ply, 2-ply, 3-ply and 4-ply trusses.
LUGT1 – designed for wood framed walls.
LUGTC2 – designed for corner hip trusses on wood framed walls.
LUGT2, LUGT3, LUGT4 – designed for wood framed, concrete or CMU block walls.
LUGT1 – designed for wood framed walls.
LUGTC2 – designed for corner hip trusses on wood framed walls.
LUGT2, LUGT3, LUGT4 – designed for wood framed, concrete or CMU block walls.
Materials: See Load Table
Finish: G90 galvanizing
Code Reports:
View Code Report Table
Technical Bulletins
Installation
- Use all specified fasteners.
- All large fastener holes must be filled with specified fasteners to achieve loads listed in the load table. Smaller fastener holes are for girder-to-stud applications and do not need to be filled when used for concrete/masonry installations.
- MiTek’s WS structural wood screws are included with LUGT3 and LUGT4.
- For concrete and masonry applications, a moisture barrier may be required, check local building code.
- For concrete and masonry applications, a moisture barrier may be required, check local building code.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
LUGT1 1-Ply Girder Tiedown
Code Report Table
LUGT1
LUGT3
No Code Listing
LUGT4
No Code Listing

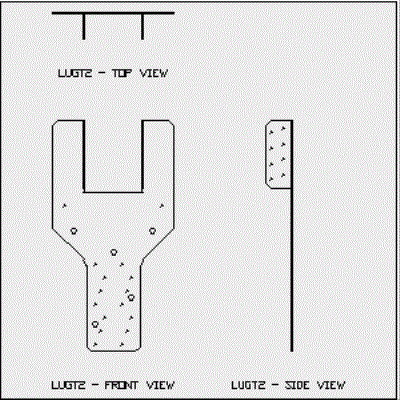

3-View Product Drawings
| MiTek Stock # | Download or View Files | |||
|---|---|---|---|---|
| LUGT2 | DWG | DXF | View Image | |
No Code Listing
