Truss and Rafter Tiedowns
Uplift Girder Ties
RFUS
Reference Series: FGTR
The RFUS is a multi-purpose engineered solution for attaching trusses to concrete or masonry walls. Screw Anchor fastening eliminates mislocated cast-in-place anchor bolts and allows retrofit installations.
Materials: 10 gauge
Finish: Primer
Code Reports:

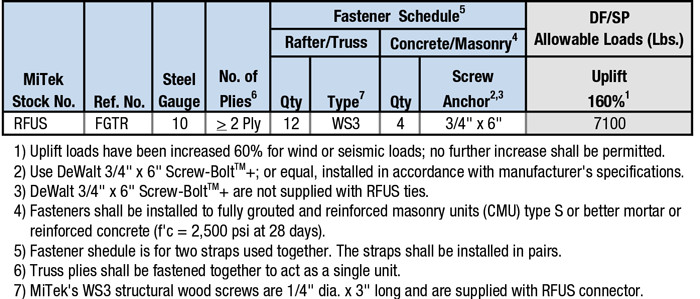

View Code Report Table
Installation
- Always install in pairs.
- Use all specified fasteners.
- Designer shall be responsible for design of masonry structure, including any required reinforcement.
- For 1 ply applications, add filler block.
- Moisture barrier may be required.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
RFUS Uplift Girder Tie
