Truss and Rafter Tiedowns
Hurricane Ties
HC / HCPRS / HHCP / LFTA / RT / TSP
Reference Series: GBC, H, HCP, HS, TSP
These anchors tie trusses and rafters to top plates and may be used to tie wood framing members to resist uplift and lateral forces.

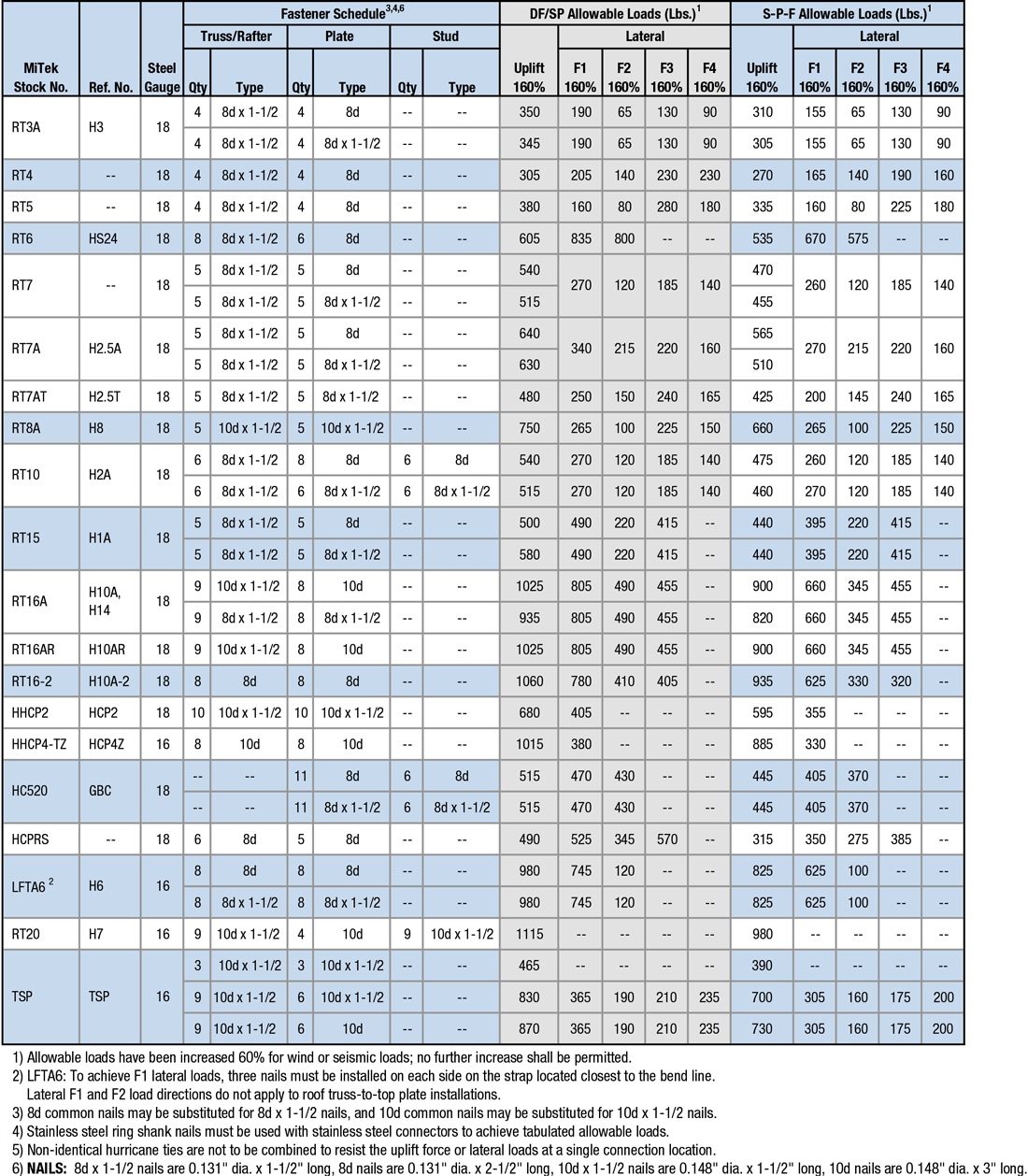

Materials: See Load Table
Finish: G90 galvanizing; HHCP4-TZ – G-185 galvanizing.
Code Reports:
View Code Report Table
Resources
MiTek Product CatalogInstallation
- Use all specified fasteners.
- TSP Min Nailing – Fill all round holes.
- TSP Max Nailing – Fill all round and diamond holes.
- To achieve full allowable loads listed, fasteners must be installed as prescribed in the load table.
- Depending on pitch, birdsmouth notching may be required with some models to enable installers to fill all nail holes.
- Designer shall determine if solid blocking is required.
- LFTA6, RT4, RT5 and RT7 ship in equal quantities of left and right versions. Left version images shown.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

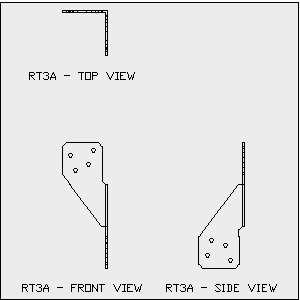

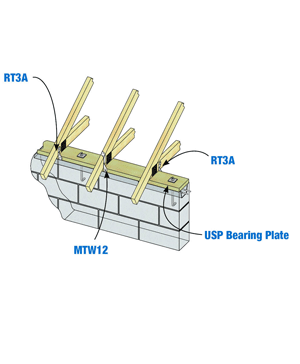

RT3A Reversible Rafter Tie
Option Details:
Code Report Table
HC520
RT10-SS
No Code Listing
RT16-2SS
No Code Listing
RT16A-SS
No Code Listing
RT3A-SS
No Code Listing
RT4-SS
No Code Listing
RT5-SS
No Code Listing
RT7-SS
No Code Listing
RT8A-SS
No Code Listing

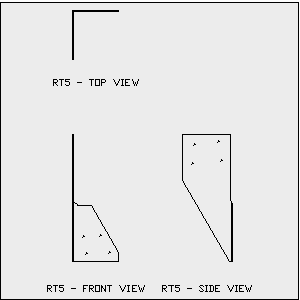

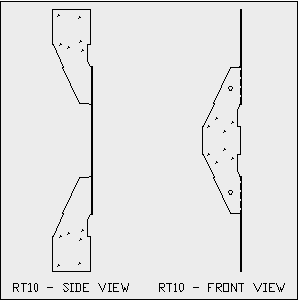

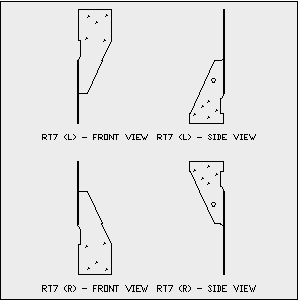

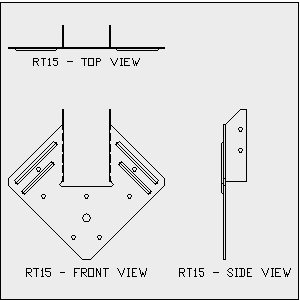

3-View Product Drawings
| MiTek Stock # | Download or View Files | |||
|---|---|---|---|---|

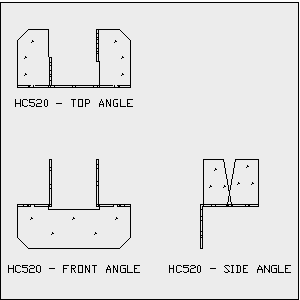

| HC520 | DWG | DXF | View Image | |

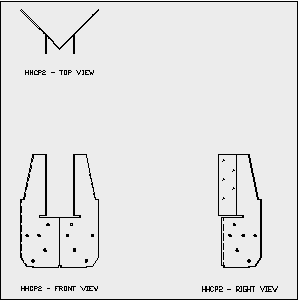

| HHCP2 | DWG | DXF | View Image | |
| LFTA6 | DWG | DXF | View Image | |
| RT10 | DWG | DXF | View Image | |
| RT15 | DWG | DXF | View Image | |
| RT16-2 | DWG | DXF | View Image | |

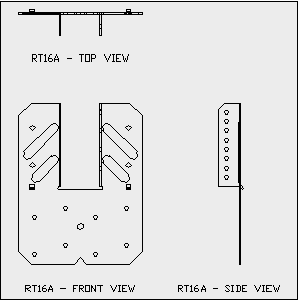

| RT16A | DWG | DXF | View Image | |
| RT3A | DWG | DXF | View Image | |

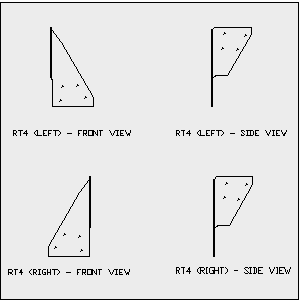

| RT4 | DWG | DXF | View Image | |
| RT5 | DWG | DXF | View Image | |
| RT7 | DWG | DXF | View Image | |

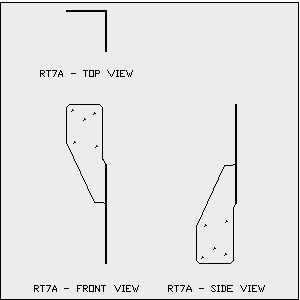

| RT7A | DWG | DXF | View Image | |
Application Drawings
| MiTek Stock # | Download or View Files | ||||
|---|---|---|---|---|---|
| HC520 | Typical | DWG | DXF | View Image | |
High Wind Drawings
| MiTek Stock # | Download or View Files | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LFTA6 |
|
||||||||||||||||||||||||||||||
| RT |
|
||||||||||||||||||||||||||||||
| RT10 |
|
||||||||||||||||||||||||||||||
| RT15 |
|
||||||||||||||||||||||||||||||
| RT16A |
|
||||||||||||||||||||||||||||||
| RT16M |
|
||||||||||||||||||||||||||||||
| RT20 |
|
||||||||||||||||||||||||||||||
| RT3A |
|
||||||||||||||||||||||||||||||
| RT7A |
|
||||||||||||||||||||||||||||||
| RT8A |
|
||||||||||||||||||||||||||||||
No Code Listing
